| Helicheck Basic 2
|
|

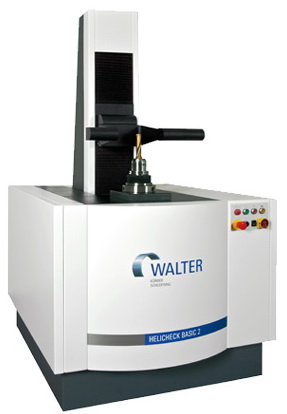

Helicheck Basic 2 - Impressive performance parameters for entry into optical CNC measuring technology
3-axis CNC measuring machine for non-contact complete measurement of the external contour of rotationally-symmetrical tools, production parts, grinding wheels and optionally also cutting edge inspection. The Helicheck Basic 2 replaces conventional technology, such as profile projectors. The optional inspection camera also replaces conventional measuring microscopes.
1 permanently installed silhouette camera
Linear measurement deviation: E1 = (2.0+L/300mm)?m / optionally E1 = (2.0+L/300mm)?m for reduced measuring range < 25 mm
Repeatability precision: ??1.5 ?m / optionally ?? ?m for reduced measuring range < 25 mm
Position resolution for all linear axes Y, Z: 0,05 ?
Position resolution for rotation axis A: approx.1"
Measuring value resolution: 0,25 ?m
Magnification
Transmitted light camera: 50 times, optionally 100 times
Connected load at 230 V/50 Hz 1.5 kVA
Operating voltage 110V-240V / 50 Hz or 60 Hz
Net weight: approx. 900 kg/ optional full enclosure approx. 100kg
Tool data
Max. diameter: 320 mm
Diameter (calliper gauge principle): 220 mm with 50 times magnification
Diameter (calliper gauge principle): 100 mm with 100 times magnification
Max. length: 420 mm
Max. weight: 25 kg
Standard software
Quick-Check Modular incl. order management
