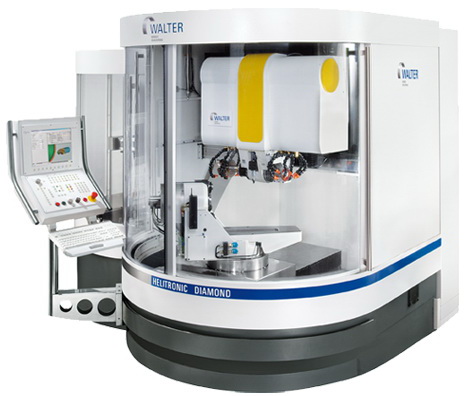

| Helitronic Diamond
|
|
With its Two-in-One concept, the Helitronic Diamond opens the door to the future market of PCD tools specifically for metal machining. Eroding of PCD and conventional grinding on ONE machine according to the motto: Eroding where necessary - Grinding where possible. And with surface qualities with RA up to 0.1 ?m.
Machine base:
Mineral casting
Drives:
Linear drives
Hollow shaft motor (750 rpm)
Motor output:
30 KW/10,000 rpm
Spindle diameter: 100mm/HSK50
Coolant device:
On request
Control system:
FANUC 310i
Standard software:
P1, P2, P3, 51, 52, 18, ToolStudio
Max. wheel /electrode diameter:
200 mm
Complete machining D/L:
320 mm (400 mm) / 300 mm
Machining length, perimeter:
370 mm
Automatic fire extinguishing system |
|
| Related Products |
|  CNC Die Sinker EDM Machine
Suzhou Baoma Numerical Control Equiptment Co.,ltd
Parameters UNIT EDMN850CNC
Working Tank (LxWxH) mm 1800 x 1100 x 570
Max. Oil Level mm 350
Table Size (LxW) mm 1150 x 600
Travel Size X mm ... | |  WorkNC Wire EDM
Sescoi USA Inc.
WorkNC Wire EDM is highly reliable, specialized Wire EDM CADCAM software specifically developed for wire erosion operations. It enables comprehensive, ... | |  EDM Small Hole Drilling machine
Suzhou Baoma Numerical Control Equiptment Co.,ltd
The machine characteristics:
?? There is a window on the machine bed for pump pressure, which is easy and convenient to look and adapt water pressure.
... |
|
|
|
|
