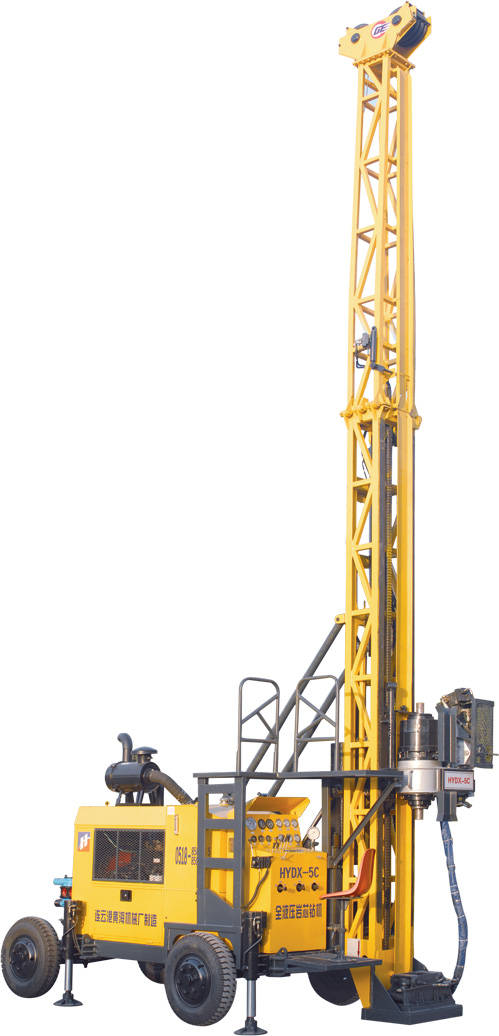

CHYDX-5C core drill rig
Model: CHYDX-5C
|
|
No. Items Specifications
1 Diesel EngineModel Kummins,6BT5.9-C180
2 Power132 Kw
3 RPM 2200 rpm
4 Drilling Capacity BQ 1500 m
5 NQ 1200 m
6 HQ 1000 m
7 PQ 700 m
8 Power of Rotator Rated Speed Two-speed Gear Shift/Stepless Speed Change 0-1100rpm
9 Max Torque 4600 N- M
10Hole Diameter 121 mm
11 Max. Lifting Power of Spindle 15000 kg
12 Max. Feeding Power 7500 kg
13 Lifting Power of Main Hoister Lifting powersingle wire 7700 kg
14 Steel Wire Diameter 18 mm
15 Steel Wire Length 50 m
16 Lifting Power of Line Winch Lifting Powersingle wire 1200 kg
17 Steel Wire Diameter 6 mm
18 Steel Wire Length 1500 m
19 Mast Mast Height 10.4m (in two-parts, folding)
20 Mast Adjusting Angle 0-90?
21 Drilling Angle 45-90?
22 Feeding Stroke 3200 mm
23 Slippage Stroke 950 mm
24 Other Weight 7000 kg
25 Overall Dimensions 4200???2200???2700mm
26 TransportWay Tyre wheel
27 Mud Pump Model Single-acting Triplex Piston
28 Displacement Max 250L/min
29 Pressure 6 Mpa
30 Foot Clamp Clamping Scope 55.5-117.5mm
|
|
