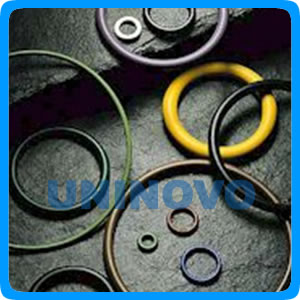

Rubber O-ring
Model: OR1000000
|
|
Rubber O-ring
Item:OR1000000
Detailed Product Description
We are able to produce Standard or Non-standard rubber ring from variety elastomer.
Features:
1) Complete series: AS568,, BS, GB,
2) Available material: NBR,Viton,FKM, Silicon,EPDM, HNBR,VMQ and so on;
3) Hardness: 60(+/-5),70(+/-5),80(+/-5), 90(+/-5);
4) Color : black, brown, white, yellow, green, blue;
5) O-ring with Teflon coating available
6) Sizes: Both standard sizes and customized sizes are available
NO. Standard C/S (mm)
1 ISO3601--1, DIN3771 1.80, 2.65, 3.55, 5.30, 7.00
2 GB 3452.1--92 1.80, 2.65, 3.55, 5.30, 7.00
3 AS568A / BS 1806 1.78, 2.62, 3.53, 5.33, 6.99
4 BS 4518 / SMS 1586 1.6, 2.4, 3.0, 5.7, 8.4
5 R 1.90, 2.70, 3.60, 5.33, 6.99
6 JIS B2401 1.9, 2.4, 3.1, 3.5, 5.7, 8.4
7 GB1235--76 1.9, 2.4, 3.1, 3.5, 5.7, 8.6
8 Consider in advance 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 7.0, 8.0, 10.0, 12.0 |
|
