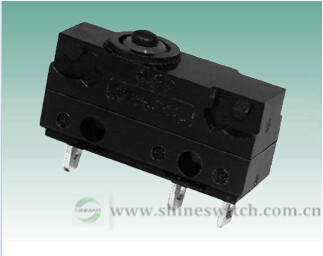

Micro Switch Series Basic Form Waterproof 3PIN S Model: WS1
Operating speed:0.1mm~1m/s(No lever)
Operating frequency: Mechanical 60cycles/min; Electrical 25 cycles/min
Insulation resistance: >=100mΩ(500VDC)
Contact resistance:
Terminal type<=50mΩ
Wire type<=100mΩ
Test voltage: Between terminal of the same polarity AC1000V,50/60Hz,1min
Between current-carrying metal parts and Ground, and between each terminal and non- AC1500V,50/60Hz,1min Current-carrying metal part. Vibration resistance:10~55Hz,1.5mm double amplitude
Shock resistance: Endurance:1000M/S^2(approx.100G)max Wrong action: 300M/S^2(approx.30G)max
Life expectancy:machanical>=1,000,000 cycles electrical>=50,000c cycles
Electric shock proof protection grade: ?class Degree protection provided by enclosure: IEC IP67 Safety approvals: UL, CUL, TUV, CE
