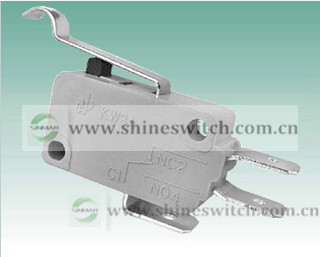

Shanghai Sinmar Electronics KW3A-16Z6 Micro Switches 16A250VAC 3PIN Arc Lever Sw
Model: KW3A-16Z6
|
|
Technical characteristics
Working speed: 0.1mm ~ 1m / s and drive the way
Rating: 16A250VAC (default value) 10A250VAC / 5A250VAC / 1A250VAC
Operating Frequency: Mechanical 60 times / min; Electrical 25 times / min
Insulation resistance: >=100mΩ (500VDC)
Contact resistance: <=30mΩ (initial value)
Withstanding voltage:
Between the carrying metal parts and ground AC1000V, 50 / 60Hz,1min
Between the terminal and uncharged metal parts, AC3750V 50 / 60Hz, 1min
Anti-Vibration: 10 ~ 55Hz, 1.5mm double amplitude
Shock: destroy action force> 0.5N: 1000M / S ^ 2 (about 100G) max
Operating force <=0.5N: 400M / S ^ 2 (about 40G) max
Fault Action Force> 0.5N: 200M / S ^ 2 (about 20G) max
Operating force <=0.5N: 100M / S ^ 2 (about 10G) max
Life: Mechanical>=2,000,000 times
Electrical >=50,000 times
Weight: about 6.2g (no boom)
Safety Certification: UL, CUL, VDE, TUV, SEMKO, DEMKO, NEMKO, FIMKO, CE, EK, CQC
|
|
