Multi-Channel Photocontrol Receptacle

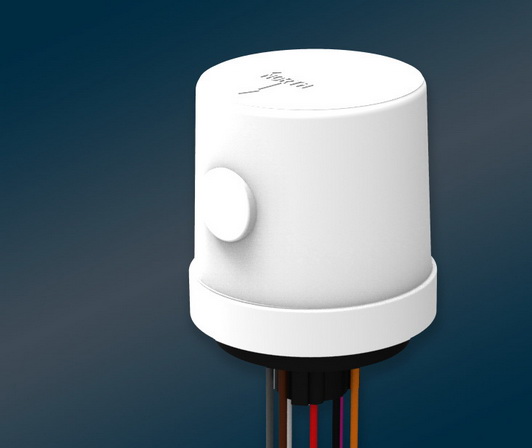

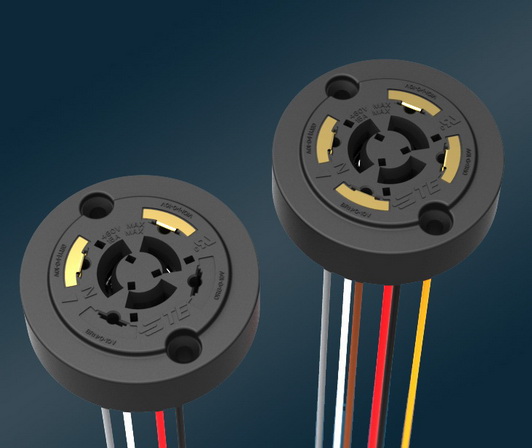

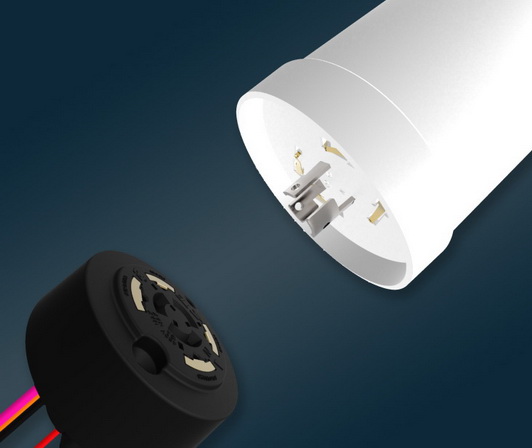

TE Connectivity launches the new ANSI C136.41 Dimming Compliant Receptacle and spring leaf contacts providing an electrical and mechanical interconnection between a photo control cell and luminaire. Ideal for outdoor commercial and utility lighting, the ANSI Dimming Receptacle is available with two or four dimming contacts to support one or two channel dimming protocols and provides a reliable power interconnect with robust twist lock contacts.

Key Features
Accepts ANSI standard dimmable photocells to provide a connection between the photocell and the luminaire
Available with two or four dimming contacts to support one or two channel dimming protocols
Robust twist lock contacts for a reliable power interconnect
Receptacle comes pre-terminated with wire leads for ease of integration into new or existing light fixtures
Available with 105o and 150o C rated wire insulation for varying temperature rated luminaires

Applications
Street Lighting
Photo Controls
Parking Lights
