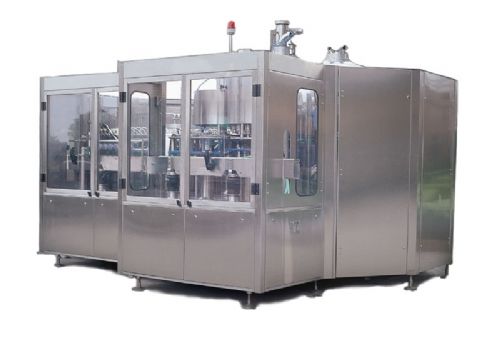

filling machine for fruit juice and tea drink
Model: RXGF 18-18-6
|
|
Usage:
The series equipment is used in hot filling and sealing of green tea, black tea, wulong tea and fruit juice. The machine integrates washing, filling, capping together. The design is scientific and reasonable. With the advantages of scientific and reasonable design, beautiful appearance, convenient operation and maintenance, and high degree of automation, it is the first choice for hot-filling drink.
Features:
This machine is designed bottleneck suspension type and applies the lift technology of filling valve, which meets the need of hot filling technology below 95?. It adopts human-machine touch screen control, PLC computerized control, transducer control and other advanced technology. All the parts contacting with material are made from SUS304 stainless steel. The primary electric components and pneumatic components introduce international famous products, such as Mitsubishi, Schneider, Omron and so on.
Technical Parameter
Model RXGF16-16-6 RXGF18-18-6 RXGF24-24-8 RXGF32-32-10 RXGF40-40-12
capacity(BPH) 4000-5000 5000-6000 6000-8000 8000-10000 16000-18000
can bottles type Bottle Diameter:f50mm-f100mm;Height:150mm-310mm
pressure of washing bottle(mpa) 0.2-0.25
watering consumption(kg/h) 1200 1500 1800 2400 3200
compressed air pressure(mpa) 0.6 -0.8
Air consumption(m3/min) 0.1 0.4 0.4 0.5 0.8
Total power (kw) 2.2 3 4 6.2 7.5
Total weight (kg) 2500 2800 3500 6000 8500
Dimension (mm) 2350x1750x2250 2480x1960x2250 3010x2180x2400 4000x2200x2500 4650*3300*3400
|
|
