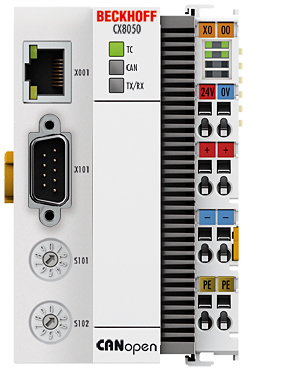

| CX8050 Embedded PC for CANopen
|
|
The CX8050 is a controller with a CANopen master interface. Apart from functioning as a CANopen master, it can also be used to support CAN-Layer-2 communication. Alternatively K-bus or E-bus terminals can be series-connected; the CX8050 automatically detects which system is connected during the start-up phase. The control system is programmed via the additional Ethernet interface.
Technical data CX8050
Processor 32 bit, 400 MHz
Flash memory 256 MB microSD (optionally 1 GB, 2 GB or 4 GB)
Internal main memory 64 MB RAM
Protocol CANopen (master)
Programming TwinCAT PLC
Programming languages IEC 61131-3
Web visualisation yes
Online change yes
Up/down load code yes/yes
Interfaces 1 x Ethernet 10/100 Mbit/s, 1 x USB device (behind the front flap)
Bus interface D-sub connector, 9-pin according to CANopen specification, galvanically decoupled
I/O connection E-bus (EtherCAT Terminals) or K-bus (Bus Terminals), automatic recognition
Clock internal battery-backed clock for time and date (battery behind the front flap, exchangeable)
UPS 1-second UPS (for 1 MB of persistent data)
Operating system Microsoft Windows CE 6
Web-based management yes
Current supply I/O terminals 2 A
Max. power loss 3 W
Dimensions (W x H x D) 65 mm x 100 mm x 80 mm
Operating/storage temperature 0…+55 ºC/-25…+85 ºC
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protection class IP 20
Approvals CE |
|
