| Rotor impact mill (RPM)
|
|

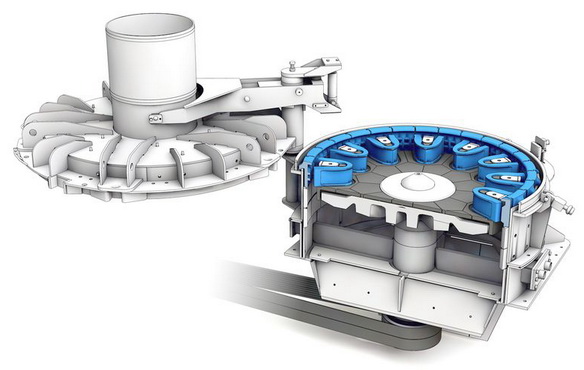

The BHS rotor impact mill (type RPM) is a high-performance crusher with a vertical shaft. The rotor is circular with horseshoe-shaped impellers. This unique impeller rotor, combined with the anvil ring, achieves a very large targeted crushing ratio and an excellent grain shape. This mill can crush all moderately abrasive minerals with maximum feed grain sizes of up to 56 mm.
An intense impact and shearing effect is achieved between the horseshoe-shaped hammers and the anvil ring. You can fine-tune this machine to your requirements by adjusting the rotor speed and the annular gap.
Several different sizes are available to ensure that customer-specific requirements are optimally met. The mill is primarily used for producing high-quality sand with excellent grain shape (e.g., for the dry mortar industry).
At our BHS technical center in Sonthofen, we can perform industrial crush tests on customer-specific materials in order to find solutions to even the most challenging problems.

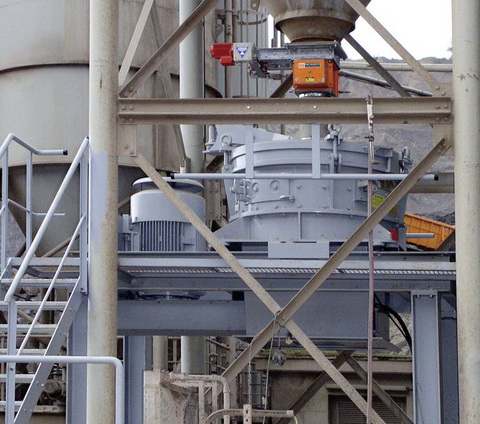

Use of an RPM 1113 rotor impact mill for production of high-grade crushed sand made from andesite grit

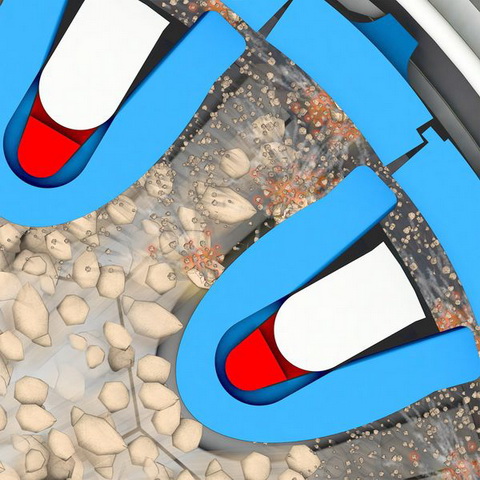

Operating principle (overhead view) of the rotor impact mill of type RPM
|
|
