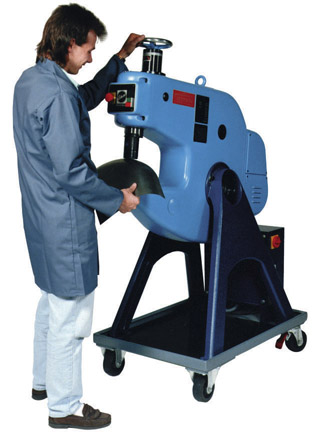

| Piccolo Kraftformer - MANUAL Pressure Control
|
|
The Eckold electrically operated machines are designed for speed and accuracy of operation. These universal machines are used for cold chipless metal forming. The "Piccolo" has a variety of optional jaws available, all with quick-change features. The speed and ease of operation add to the high quality and profitablity of the job being performed. Ideal for aircraft and auto restoration metal forming.
TECHNICAL DATA
760 lbs. (Approx.)
• Throat reach: 14"
• Throat gap (less tooling): 9-1/2"
• Vertical tooling clearance: 6-3/8" - 7-1/2"
• Overall height: 61-1/4" - 65-5/8"
• Adjustment of ram: 1.30" by hand wheel, 1.18" by geared motor
• Strokes per minute: 400
• Kind of current: 3 phase AC
• Forming capacity:
- Deep drawing steel: .079
- Light metal: .100
- Stainless steel: .060
• Voltage and frequency: per customer request
• Shipped motor freight - freight collect |
|
