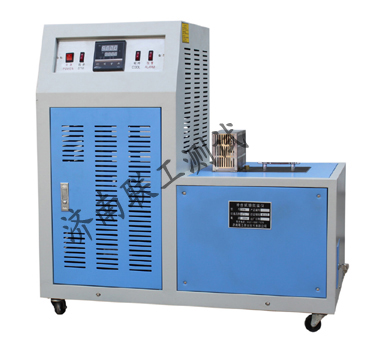

Low Temperature Impact Tester/Environmental Chamber/Impact Sample Cooling Chambe
Model: CDW-60
|
|
Low-temperature Impact Testing Machine Series
Usage and Characteristics
CDW series pendulum impact testing low-temperature meter is newly researched and developed compressor refrigeration plant according to requirement of low temperature device in GB/T229-2009 (metallic materials-Charpy notch impact testing machines). This device includes compressor refrigeration and liquid nitrogen refrigeration. Compressor cooling takes advantage of principle of heat balance and loop mixing method to achieve automatic uniform cooling and constant temperature for samples. The refrigeration mode of ultra-low temperature equipment adopts mainly liquid nitrogen refrigeration, using the performance of ultra-low temperature of liquid nitrogen, based on heat balance principle, to achieve automatic uniform cooling. The temperature indicators can meet the national standard completely. It also can satisfy American standards and European standards, like ASTM, E23-02a, En10045, ISO83 and other international relative standards.
Advantages
1. Imported compressor, DANFUS valve, imported evaporation-condensation machine;
2. Controlled by intelligent instrument, digital presentation temperature value, automatic control temperature, automatic time and alarm.
3. Easy to operate, prompt refrigeration speed, capacious working space, high-precision control temperature.
4.Make sample fully soaked inside the plowing liquid, sample can be fully cooling and uniform.
5. The equipment only needs AC220V power source, which is energy-saving and environmental protection.
Specification CDW-40 CDW-60 CDW-80 CDW-80T CDW-100(110)T CDW-196
Temperature Range Room Temperature
-40º Room Temperature
-60º Room Temperature
-80º Room Temperature
-110(110)º Room Temperature
-196º
Temperature Control Accuracy ±0.5º ±2º
Cold Room Volume
(LxWxH)mm 250x160x120
Dimensions (LxWxH)mm 910x510x920 740x590x710 1300x800x1100 910x510x920
Box Material Steel Spray Stainless Steel Steel Spray Stainless Steel
Loading the number of samples No less than 60
Mode of refrigeration Compressor refrigeration Liquid nitrogen refrigeration
Cooling Medium Ethanol or other unfrozen liquid Liquid nitrogen
Power 1.8Kw 2.3Kw 2.5Kw 3Kw 900W
Remarks: The cold room volume can be specially manufactured according to the customer''s requirement.
|
|
