Hydraulic Universal Testing Machine-UTM-Material Testing Machine
Model: WEW
|
|
Universal Testing Machine Series

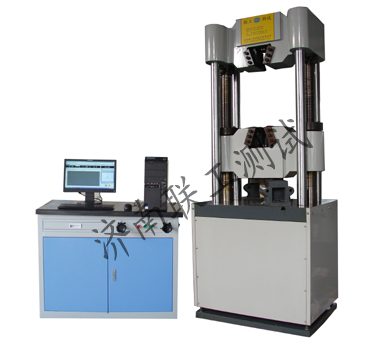

Hydraulic Universal Testing Machine
WEW series are computer LCD display, all kinds of parameters and curves can display on the computer screen real-timely, which also have the functions of the printing test reports and data processing.
WAW computer control electro-hydraulic servo series are mainly used in testing of 30Kn-2000Kn, electronic measure collecting test data, programming full automatic test, automatic analysis, printing report and curves.
The above two series testing machine host adopts cylinder down-setting, mainly used for metal, nonmetal tensile, compression,bend and shear tests. It is applicable to metallurgy, construction, light industry,aviation, spaceflight, materials, universities and colleges, scientific research institutes and other fields. The test operation and data processing accord with GB/T228-2002 (Metal Material Room-temperature Tensile Testing Method).
Main Technical Parameters
Type/Specification WEW-100B WEW-300B WEW-600B WEW-1000B WEW-2000B
WAW-300B WAW-600B WAW 1000B WAW-2000B
Max. test force(Kn) 100 300 600 1000 2000
Relative error of indicating balue ±1%
Max. tensile space(mm) 560 620 690 620 700
Max. compression space (mm) 530 550 620 580 600
Clamping diameter range of round sample (mm) ø6-ø22 ø6-ø26 ø13-ø40 ø14-ø45 ø20-ø70
Clamping diameter range of flat sample (mm) 0-15 0-30 0-40
Max.space of bending supporting point (mm) 400 500
Diameter of cutting sample (mm) ø10
Space between two side pillars(mm) 460 495 570 600 880
Total Power(Kw) 1.2 2 2.1
Outline Size (LxWxH)mm Host 750x450x1780 800x500x1950 950x630x2265 980x650x2220 1500x900x3500
Worktable 1400x960x830
Advantages
WEW Series Computer Screen Display Hydraulic Universal Testing Machine
Host is thick, good rigidity
Oil cylinder using special technology, grinding processing, long service life, smooth operation
Column, ball screw using 40Cr treatment
Worktable and crossbeam adopt cast steel, oil source console using steel casting with plastic-sprayed surface treatment, marble table.
Oil pump adopts imported Italian high pressure gear pump, low noise, oil pressure smooth.
Internal pipeline of oil source adopt high-pressure pipe, and the hydraulic clamping part using high-pressure steel hose, safe sealing and not leaking.
WAW Series Computer Control Electro-hydraulic Servo Universal Testing Machine
The up, middle and down crossbeam of host adopt steel materials, and the whole machine has good rigidity.
Oil source adopt box structure, marble table, clean and neat, save space.
Imported ATOS electric-hydraulic servo and high pressure gear pump.
Oil cylinder using special technology, grinding processing, long service life,smooth operation. |
|
