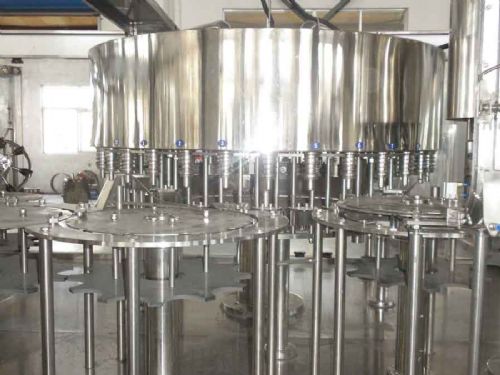

Complete pure water filling line
Model: CGF
|
|
The complete pure water filling line is to fill pet bottle or pe bottle from 200ml-2000ml .
Fill pure water or mineral water .
It is washing filling capping 3in1 unit .High automatic.
Technical Parameter:
Model CGF
Filling head
(piece) 14 18 24 32 40 50 60
Washing head
(piece) 12 18 24 32 40 50 60
Capping head
(piece) 5 6 8 10 10 12 15
max.Capacity
(500ml bottle/hr) 4000 6000 12000 15000 20000 24000 30000
Water washing pressure (Mpa) 0.2-0.25
Main power(kw) 2.2 2.2 3 4 7.5 9.5 12
2. Bottled Water Making Filling And Packing Production Line:
Part I: water treatment system
Raw water -> raw water tank -> raw water high pressure pump -> multi-medium filter (Quartz
sand filter) -> active carbon filter -> sodium ion exchanger -> water pump -> precision filter
-> RO device or hollow fiber ultra-filter -> ozone device -> pure water tank
Remark: Supply water for washing-filling-capping units
Part II: Pure water filling and packing production line
Pet bottle blow molding machine -> Automatic bottle unscrambler -> air bottle loading
conveyor -> auto washing filling and capping machine units( three -in one) -> bottle dryer
-> ink jet printer -> auto hot shrink labeling machine -> hot shrink label tunnel -> auto
film shrink wrapping packager-> stacker by worker |
|
