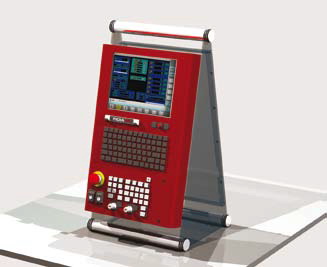

| CNC Numerical Control nC12R
|
|
Simplicity and functionality are the main features of nC12R 12" monitor,keyboard push button and handweel are located in a compact case. Only few I/O modules have to be placed in the electrical cabinet. Analog interface allows to use nC12R on all old machine equipped with motors in good condition and analog drives without change them.
THE FIDIA INTEGRATED SYSTEM
Looking for ever more complete solutions to equip modern machine tools, Fidia has designed nC12R and nC15, representing a compact and effective solution optimising all electronic components. Further to these improvements, the essential performance features are granted anyhow; for over 30 years in fact they have been characterizing Fidia brand just like the fast and accurate 3D machining, the 5-interpolated axis management, the advanced functions for moulds and models machining and also the opening of Windows applications.
Further to the well-known functions for the high speed sculptured surface milling most Fidia users are familiar with, there are other features dedicated to a more general mechanical machining (milling, drilling, boring, etc.), to the piece measuring, to the piece alignment, to the tool management (extended tool table, tool measuring).
The simple and intuitive ISO machining cycles feature an helpful interactive graphical support and can be easily matched to the NC integrated DXF format direct reading. In the workshop, this solution allows to directly import a file containing the workpiece data on the piece size, thus avoiding both cumbersome drawings and the input of large data amounts.
The Touch Screen is a further innovation to the full operator's advantage. At the same time the operator finds a full uniformity of the user interface with other Fidia NC families (C and M Class) and a complete ISO, ISOGRAPH or PRJ (HI-MILL project) formats compatibility as well. |
|
