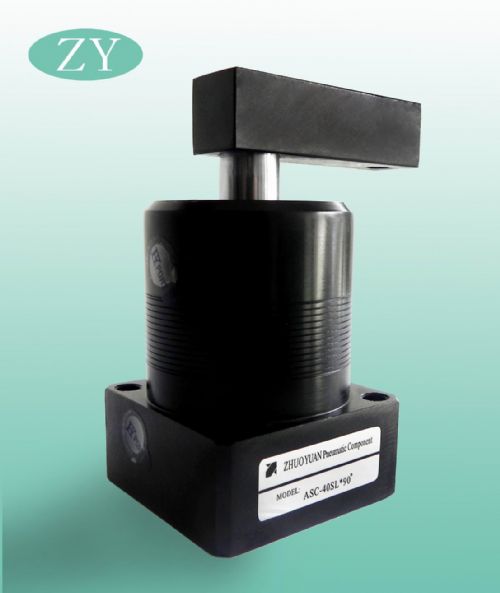

ASC Air Swing Clamp Cylinder
Model: ASC
|
|
Model Numbering System
1 2 3 4 5 6 7
ASC - MF - 25 - S - R x 90 - E
1,Series: ASC
2,Type:
Blank:Line Type
MF:Deep hole with speed adjustable
MS:Magnetic Sensor Type
FA:Flange Type
TB:Threaded Body
3,Cylinder Bore:
25:ø25
32:ø32
40:ø40
50:ø50
63:ø63
4,Clamping Arm Type:
S:Single Side Arm
D:Double Side Arm
5,Rotating Direction
L:Turn Left
R:Turn Right
NO:No Swing
6,Rotating angle:
45:45º
60:60º
90:90º
7,E:Stroke Extension Line Type
Features
•Used for machine mainly producing parts in large quntity and MC tooling,do a good job during the improvement of production efficiency.
•Its main function is that when the air cylinder is operated,druing the stroke moving down, the clamp will swing to the designed angle and then press stringht down until it fix the part.
•Material of the cylinder is Al,harden process applied on the surface and inside surface is polished,which ensures long expecting life.
Specification
Cylinder Bore(mm): ø25ø32 ø40 ø50 ø63
Piston rod Diameter(mm):ø10ø16 ø16 ø20 ø20
Swing Stroke(mm): 9 11 11 13 13
Dive Stroke(Standard/Extended)(mm): 13 15/3015/30 17/3417/34
Pressed area(pull/push)(cm2): 3.37/4.916.03/8.0410.56/12.57 16.49/19.63 28.03/31.17
Clamping Force(kg/cm2):20 36 63 99 168
Any further information,pls feel free to contact us. |
|
