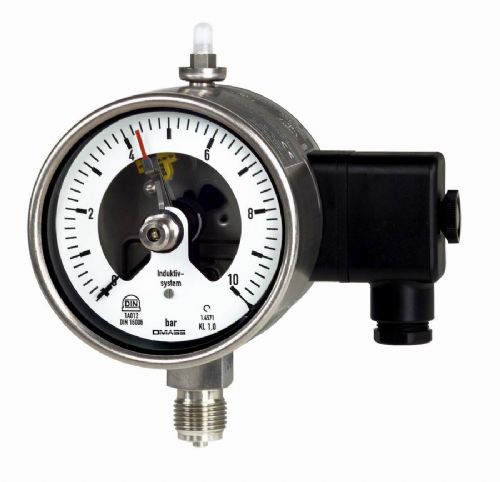

DMASS pressure gauge with electric contacts MBSA Model: MBSA
Standard version:
Nominal size in mm: 100,160
Accuracy class: 1.0
Scale ranges: 0/0.6 to 0/1600 bar
Operating temperature:
1.Ambient:-20/60oC without liquid filling and gauges with silicon oil filling
2.Medium:200oC maximum without liquid filling,100oC maximum with liquid filling
Tmeperature effect:
When the temperature of the measuring system deviates from the reference temperature(20oC):max.±0.4%/10K of full scale value
Process connection:
Stainless steel 316L,
lower mount(LM) or lower back mount(LBM)
G1/2B(male),22 mm flats
Pressure element:
Stainless steel 316L
<100 bar:C-type
>=100 bar:helical type
Movement: Stainless steel
Dial: Aluminium,white,black lettering
Pointer: Instrument pointer--aluminium,black
Desired value indicator:red
Case:Stainless steel
Model MBSA: with pressure relief in case back,scale ranges<=0/16bar with compensating valve to vent case
Switch contacts:
Magnetic snap-action contact model D21
1.No control unit and no extra power supply required
2.Direct switching up to 230V
3.Up to 4 switch contacts per measuring instrument
4.Suitable for Ex zone 22(3 D)
Inductive contact model D31
1. Long service life due to non-contact sensor
2. Additional control unit required
3. With corresponding control unit suitable for use in Zone 1/21(2 GD) hazardous areas
4. Low reaction on the display accuracy
5. Fail-safe switching at high switching rates
6. Insensitive to corrosion
7. Up to 3 switch contacts per measuring instrument
Contact function:
The contact function of the switch is indicated by function index1,2 or3.
Model DXX.1: Contact makes(clockwise rotary motion of the pointer)
Model DXX.2: Contact breaks(clockwise rotary motion of the pointer)
Model DXX.3: Change over; one contact breaks and one contact makes simultaneously when pointer reaches set point
Options:
1. Other process connection
2. Liquid filling
3. Inductive contacts also in safety version
4. Dual scale
5. Panel mounting flange, polished stainless steel
6. Surface mounting lugs on case, stainless steel
7. SIL2 approval
